Want your asphalt driveway to last for years? Sealing it is key. Unsealed surfaces allow rainwater to seep into cracks, leading to expensive damage during the rainy season. Using a top-tier penetrating sealer provides strong, long-lasting protection. Always begin with a deep, thorough cleaning of the driveway.

Our expert research team thoroughly tested several high-quality driveway sealers and selected Foundation Armor as the best penetrating concrete driveway sealer. This choice was based on its excellent performance, superior quality, and highly positive customer feedback. Most users are very satisfied with the results after application.

Here, you can find detailed reviews of some of the most popular driveway sealers.

1. Foundation Armor sealers
2. Endura Seal Driveway Sealer
3. Foundation Armor WL550 Sealer
4. Black Diamond Stoneworks Concrete Sealer

A concrete driveway is a substantial financial investment and a foundational element of your home’s curb appeal. Whether you are maintaining a modern property in the tech hubs of San Francisco, a suburban home in the expansive residential developments of Texas, a coastal estate in Miami, or a property facing freezing winters in New York and Washington state, your concrete surfaces are under constant environmental duress.

Many homeowners look at concrete and see an indestructible, rock-solid mass. In reality, concrete behaves on a molecular level like a hard, rigid sponge. It is crisscrossed by a complex network of microscopic pores, capillaries, and air voids created during the original mixing and hydration process. Left unprotected, these pores act as open pathways for water, automotive fluids, winter road salts, and chemical pollutants to seep deep into the slab, initiating a slow process of structural degradation.

To safeguard your slab against cracking, spalling, and staining, you must apply a high-performance protective coating. However, entering the home improvement aisle can trigger immediate confusion. Should you apply a topical topical coating that sits on top of the surface, or should you look for the best penetrating concrete driveway sealer to chemically bond inside the pores?

The Molecular Science of Concrete Degradation

To choose the right concrete sealer, you must understand the two primary destructive forces attacking your driveway: the freeze-thaw cycle and chemical rebar corrosion.

                        [THE CONCRETE DEGRADATION TIMELINE]

     Water Entry  ──► Capillary Saturation ──► Freezing/Expansion ──► Surface Spalling & Pittings
                                   │
                                   ▼
     Salt/Chlorides ──► Deep Pores Penetration ──► Rebar Oxidation ──► Structural Cracking & Heaving

The Freeze-Thaw Cycle and Capillary Pressure

Concrete contains thousands of microscopic capillaries. When rain falls or snow melts, water is drawn into these voids via capillary action. If your property experiences freezing temperatures—common during winters in New York, Washington, and northern California—this trapped water freezes.

When liquid water transitions into ice, its volume expands by approximately 9%. In a saturated, unsealed concrete slab, this expansion generates massive internal hydraulic pressures that easily exceed the natural tensile strength of the concrete. This causes the surface layers to split, chip, flake, and pit away—a destructive process known as spalling.

We can model the internal hydraulic pressure ($P_h$) generated within a freezing concrete pore using a simplified structural equation:

$$P_h = \frac{E \cdot (\Delta V / V_0)}{3 \cdot (1 – 2\nu)}$$

Where:

• $E$ represents the elastic modulus of the cured concrete matrix.
• $\Delta V / V_0$ is the volumetric expansion strain of the freezing water ($0.09$).
• $\nu$ is Poisson’s ratio for the specific concrete mix design.

When $P_h$ surpasses the concrete’s internal resistance, micro-fractures develop, widening over time into large, structural cracks across your driveway.

Chloride Intrusion and Rebar Spalling

The second major threat is salt intrusion. When winter road salts are tracked onto your driveway, or when coastal salt air blows across a property in Miami or San Francisco, dissolved chloride ions ride along with moisture deep into the concrete.

Once these chlorides reach the internal steel reinforcement bars (rebar), they strip away the steel’s protective alkaline passivating layer. The rebar begins to rust and oxidize. As steel rusts, it expands up to 600% of its original size. This massive internal expansion forces the concrete outward from the inside, causing deep structural failures and catastrophic cracking.

Penetrating vs. Topical Sealers: What’s the Difference?

The concrete sealing market is divided into two fundamentally distinct categories: topical coatings and penetrating sealers.

+-------------------------------------------------------------------+
|                  THE COATING ARCHITECTURE MATRIX                  |
|                                                                   |
|  [Topical Sealer]    Acrylic / Polyurethane / Epoxy layer.        |
|                      Forms a glossy film on top; prone to wear.  |
|                                                                   |
|  [Penetrating Sealer] Silane / Siloxane / Silicate formulations.  |
|                      Bonds internally; invisible UV-stable shield.|
+-------------------------------------------------------------------+

Topical Sealers (Acrylics, Epoxies, Polyurethanes)

Topical sealers form a protective plastic-like film directly on top of the concrete surface. They are popular for creating a shiny, wet-look gloss or a clean satin finish.

• The Catch: Because they sit entirely on top of the slab, they are constantly exposed to direct friction from spinning car tires, footsteps, and UV rays. Over time, they can scratch, turn yellow, and wear away. More importantly, they trap internal moisture vapor trying to rise out of the ground. When that vapor cannot escape, it pushes against the film, causing it to bubble, cloud, and peel off in large flakes.

Penetrating Sealers (Silanes, Siloxanes, Siliconates)

The best penetrating concrete driveway sealers do not form a surface film. Instead, they consist of ultra-fine molecules suspended in water or solvent carriers that sink deep into the concrete’s capillaries—often penetrating up to 1/4 to 1/2 inch deep.

• How it Works: Once inside, these molecules react chemically with the free lime and calcium hydroxide present in the concrete. This reaction converts the porous interior walls of the capillaries into a highly hydrophobic, glass-like crystalline structure.
• The Benefits: Because the reaction occurs entirely beneath the surface, a penetrating sealer never alters the appearance or slip-resistance of your driveway. Your concrete looks completely natural, but it gains an invisible water-repelling shield. Spinning tires cannot wear it away, UV rays cannot degrade it, and the surface remains completely breathable, allowing internal moisture vapor to escape harmlessly without causing blisters or peeling.

Deep Dive into Penetrating Chemistry: Silane vs. Siloxane

When shopping for a high-quality penetrating sealer, you will primarily encounter three active chemical formulations: Silanes, Siloxanes, and Siliconates. Choosing the right one depends on your specific performance needs.

               [SILANE FORMULATIONS]                    [SILOXANE FORMULATIONS]
       ┌─────────────────────────────────┐        ┌─────────────────────────────────┐
       │ Ultra-small molecular structure │        │ Larger molecular configuration  │
       │ Penetrates deep into dense slabs│        │ Rests near surface of porous mix│
       └────────────────┬────────────────┘        └────────────────┬────────────────┘
                        │                                          │
                        ▼                                          ▼
       ┌─────────────────────────────────┐        ┌─────────────────────────────────┐
       │ High longevity; resists UV rays │        │ Economical; ideal for brick too │
       └─────────────────────────────────┘        └─────────────────────────────────┘

Silanes: Deep Penetration for Dense Slabs

Silane molecules are incredibly small, giving them the unique ability to penetrate deep into highly dense, tightly packed concrete surfaces.

• Performance Traits: Because silanes evaporate slowly during application, they have plenty of time to sink deep into the concrete matrix before curing. This makes them exceptionally long-lasting and highly resistant to abrasive wear from vehicle traffic. However, because they are light and volatile, they require a higher concentration of active solids (typically 40%) to perform optimally, making them slightly more expensive.

Siloxanes: Cost-Effective Protection for Porous Concrete

Siloxane molecules are significantly larger than silane molecules. Instead of sinking deep into the dense core, they anchor themselves near the upper surface of the concrete pores.

• Performance Traits: Siloxanes are an excellent, cost-effective choice for standard, highly porous concrete driveways, broom-finished slabs, brick pavers, and concrete blocks. They establish a powerful surface water-beading effect very quickly after application. However, because they sit closer to the surface, they are slightly more vulnerable to mechanical wear over extended periods than deep-set silanes.

Silane/Siloxane Blends: The Engineered Compromise

To offer homeowners the best of both worlds, leading manufacturers formulate advanced Silane/Siloxane blends. These hybrid sealers pair small silane molecules (for deep, long-term protection against rebar corrosion) with larger siloxane molecules (for immediate, high-performance surface water-beading). This makes hybrid blends the most well-rounded option for residential driveways across varying climates.

Siliconates: Rapid Single-Coat Barrier Technology

Siliconate sealers represent a slightly different branch of penetrating chemistry. When sprayed onto concrete, they react almost instantly with the substrate to form an internal hydrophobic barrier network within the upper layer of the pores. They are highly efficient, require only a single application coat, and provide excellent resistance against oil stains, mold growth, and water intrusion.

Exhaustive Product Breakdown: The Best Penetrating Sealers

The engineering team at itemguides.com evaluated the leading penetrating formulations on the market based on molecular depth, ease of application, active solids content, and long-term durability.

Ghost Shield Siloxa-Tek 8500: The Ultra-Premium Choice

• Chemical Base: Advanced Water-Based Silane/Siloxane Hybrid
• Best For: Driveways facing extreme winters, freeze-thaw cracking, and heavy road salt exposure.
• The Deep Dive: Ghost Shield Siloxa-Tek 8500 is a commercial-grade formulation optimized for high-performance residential use. Its unique molecular structure penetrates deep into concrete capillaries, reducing water absorption by up to 95%. It offers unmatched protection against spalling, salt scaling, and freeze-thaw damage. The water-based formula is virtually odorless, safe to apply, and eco-friendly, keeping it fully compliant with strict VOC regulations in California and New York. Once cured, it provides a stable barrier that protects your driveway for up to 5 to 10 years.

Foundation Armor SX5000: The Penetrating Powerhouse

• Chemical Base: High-Solids Solvent-Based Silane/Siloxane Blend
• Best For: Maximum possible lifespan and deep protection on dense concrete slabs.
• The Deep Dive: Foundation Armor SX5000 is a robust, Department of Transportation (DOT) approved sealer. It uses a high-performance solvent carrier system that drives the active silane and siloxane resins deep into the concrete pores. It creates an exceptional hydrophobic barrier that makes water bead up immediately on contact, preventing moisture and chloride ions from ever reaching your internal rebar. Because it is solvent-based, it can be applied in lower temperatures than water-based alternatives, though you should expect a strong chemical odor during the spraying and drying phase.

PS102 Fluorosilicone Concrete Sealer: The Ultimate Stain Defender

• Chemical Base: Water-Based Siliconate/Fluorochemical Hybrid
• Best For: Driveways prone to oil leaks, grease spots, and tire marks.
• The Deep Dive: While traditional silanes only repel water, PS102 blends siliconate technology with an advanced fluorochemical polymer. This hybrid approach allows the sealer to repel both water and oil-based fluids. If an older vehicle leaks oil or transmission fluid onto a driveway sealed with PS102, the liquid cannot soak into the porous concrete fibers. Instead, it pools safely on top, allowing you to wipe it away cleanly with a rag or mild detergent before a permanent stain can form.

Technical Comparison Matrix: Top Penetrating Sealers

To help you choose the right formulation for your home’s regional climate, the team at itemguides.com has compiled this comprehensive reference matrix:

Product Name	Chemical Category	Carrier Base Type	Expected Lifespan	Primary Environmental Target
Ghost Shield Siloxa-Tek 8500	Silane/Siloxane Hybrid	Eco-Friendly Water-Based	5 – 10 Years	Severe freeze-thaw cycles, winter road salt scaling, heavy rains (New York, Washington).
Foundation Armor SX5000	High-Solids Blend	High-Penetration Solvent-Based	5 – 10 Years	Ultimate depth of protection, cold-weather applications, maximum water bead.
PS102 Concrete Sealer	Siliconate/Fluorochemical	Water-Based Zero-VOC	3 – 5 Years	Rejects automotive fluids, oil spills, and tire rubber marks (Texas, California).
Aquamil 100M	Pure Silane Concentrates	Water-Based Low-Odor	7 – 10 Years	Extremely dense concrete driveways, commercial-grade architectural slabs.

Step-by-Step Professional Application Protocol

To ensure your penetrating sealer bonds flawlessly inside the concrete capillaries, you must prepare the surface correctly. Follow this step-by-step professional protocol to maximize your sealer’s performance and lifespan.

  [1. Deep Clean Slab] ──► [2. Open the Voids] ──► [3. Absolute Dry Phase] ──► [4. Apply First Coat] ──► [5. Wet-on-Wet Second Coat]

Deep Chemical and Mechanical Cleaning

Your concrete must be completely free of dirt, oil, grease, old paint, or existing topical sealers. Use a heavy-duty degreaser or concrete cleaner to scrub away automotive stains.

Rinse the entire slab thoroughly using a pressure washer set between 2500 and 3000 PSI. Use a wide fan tip nozzle and keep it moving continuously to avoid etching lines into the concrete surface.

Open the Concrete Capillaries (Acid Etching)

If your driveway has a smooth, troweled finish, the pores may be too tight to accept a penetrating sealer.

• The Test: Pour a cup of water onto the dry concrete. If it beads up and sits on top without soaking in, you must open the pores.
• The Process: Apply a mild solution of muriatic acid or an eco-friendly concrete etching cleaner. The solution will fizz as it reacts with the surface minerals, opening the pores and creating a texture similar to fine sandpaper. Rinse the slab multiple times with clean water to neutralize any remaining acid.

No.1 – Foundation Armor sealers
Best concrete driveway sealer

This is one of the popular driveway sealers in the market. Its popularity is very high because of its quality. Most of the customers are very happy after using this. This is not only best for concrete but also for masonry. It is made from non-recycled resins and made in the USA. So, you can understand the product quality. It can last around 3 years externally. Within 1-3 years it looks newly coated. It can save interior surfaces 3-5 years, then you need to re-coat. You can use this sealer with a sprayer or roller. The weight of this item is 5 liters. Allow one day for the second coat, actually, it needs 24 hours to dry. The price is not too high, so anyone can easily pick it.

More than 217 customers have given them valuable feedback, and they have received 4.7 out of 5. Among them, around 87% of the customers have given them 5 out of 5 and only 4% of the customers have given them 1 out of 5. So you can easily understand the product quality.

Why we pick it –

• Very good customers feedback
• Weight – 5 gallons (ca. 19 l) pail
• 1-3 years on exterior surfaces
• Manufactured in the US
• Cover 200 square feet (ca. 19 m²) per gallon each coat

No.2 – Endura Seal Driveway Sealer
Best penetrating concrete driveway sealer

Our expert team chooses it as number one because of its quality and customer reviews. Most of the customers of this item are very happy after using this sealer. This is 100% pure acrylic, high solids’ sealer. Not only it will protect your driveway but also beautify the road with a semi-gloss. The main company re command for 2 thin coats that will protect from heavy rain as well. The weight of this item is 5 gallons (ca. 19 l). The color of this item is clear, so you can see the natural color of the concrete. Remember a thing that, before using this sealer you must clean the driveway first.

More than 122 customers have given them valuable feedback. And they have received 4.3 out of 5. Among them, around 84% of the customers have given them 5 out of 5. And only 3% of the customers have given them 1 out of 5. So, you can easily understand the product value.

Why we pick it –

• Weight – 5 gallons (ca. 19 l) pail
• 100% pure acrylic
• Manufactured in the US
• Clear color, so you can see original concrete color
• Approximately 150-300 square feet (ca. -28 m²)

No.3 – Foundation Armor WL550 Sealer

This is another good quality concrete sealer that is best for you which is provided by Foundation. Most of the customers are very happy after viewing this item. This is best for brick, stone, concrete, pavers, etc. It is breathable, even it works with a single coat. This is designed in a natural color so that it looked very nice.

More than 75 customers have given them valuable feedback. And within them, they have received 4.6 out of 5. Among them, around 80% of the customers have given them 5 out of 5. And only 2% of the customers have given them 1 out of 5. So you can easily understand about the quality.

Why we pick it –

• Weight – 5 gallons (ca. 19 l) pail
• Single coat application
• Silicone water repellent sealer
• Approximately cover up to 875 FT2

No.4 – Black Diamond Stoneworks Concrete Sealer

This is one of the popular concrete seller product in the market. Most of the customer like it because of its popularity and convenient price. Our expert research team choose it based on its customer reviews. It has too many customer reviews. You can use it for your driveways, garage floors, concrete, brick, etc. This is a wet looked sealer. So, you can use it for multipurpose use. You can use it in roller, brush, and sprayer. This sealer is made in the USA.

More than 380 customers have given them valuable feedback. And, they have received 3.9 ratings out of 5. Among them, around 60% of the customers have given them 5 out of 5. And only 13% of the customer have given negative feedback. So, you can easily understand the product value. Most of the customer are happy after using this item. So, without any hesitation, you can easily pick it.

Why we pick it –

• Weight – 5 gallons (ca. 19 l) pail
• Made in USA
• 100% Money-Back Guarantee, so you are getting money back guarantee
• Best for driveways, brick, concrete
• Approximately cover up to 600 sq Ft.

No.5 – ToughCrete Concrete Driveways Sealer

This is another popular product represented by ToughCrete. It is popular because of its popularity and durability. Most of the customers of this item are very happy after using it. You can easily use it for different surfaces like concrete, garage floor, patio, driveway, sidewalk, etc. It will protect from running water, deterioration and salt damage for 10 years. The most important part is the seller will give you buying protection. If you don’t like this product, you will get a full refund. That means you can easily pick and try this product for your driveways.

Most of the customers of this product are very happy. More than 77 customers of this driveway sealer have given them valuable feedback. Among them, around 60% of the customers have given them 5 out 5. And allover customer feedback id 4.1 out of 5. So, you can easily understand about the product quality.

Why we pick it –

• Weight – 1 gallon (3.79 l)
• Use up to 10 years
• 100% Money-Back Guarantee, so you are getting purchase protection
• Best for driveways, brick, concrete
• Approximately cover up to 600 sq Ft.

The 24-Hour Drying Window

This is where many DIY projects fail. Penetrating sealers rely on capillary action to draw their active ingredients deep into the slab. If the concrete pores are already filled with water from a recent pressure washing, the sealer will be rejected, pooling on top and drying into an ugly white residue.

• The Rule: Allow the concrete to dry for at least 24 to 48 hours of clear, dry weather before applying your sealer.

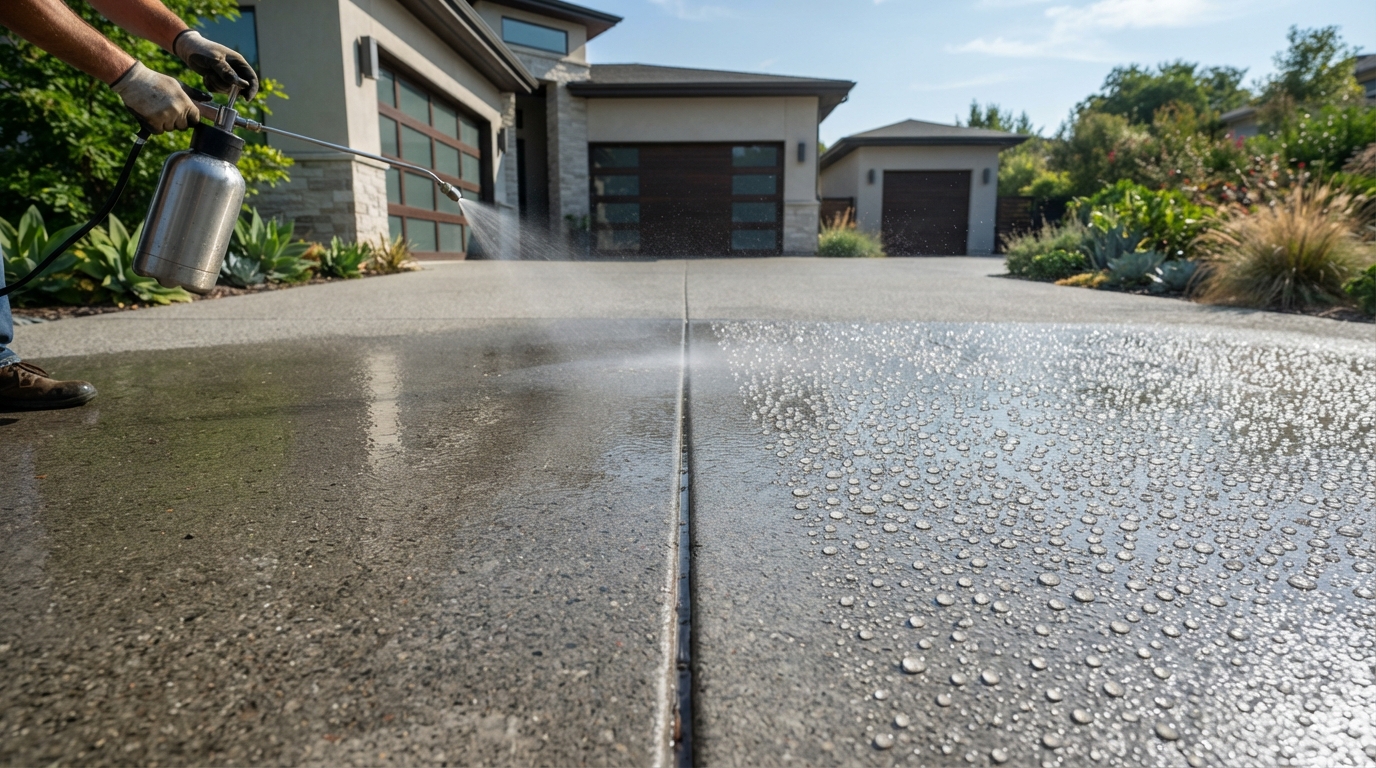

Strategic Product Application

• The Right Tool: Use a high-quality low-pressure garden pump sprayer equipped with an adjustable brass fan-tip nozzle. This tool allows you to distribute the liquid evenly without creating overlapping roller lines.
• The First Coat: Start at the highest point of your driveway and work your way down in uniform, overlapping rows. Apply enough sealer to keep the concrete visibly wet for 2 to 3 minutes, but do not allow the product to form deep, standing puddles.

The Critical “Wet-on-Wet” Second Coat

Most high-end penetrating sealers require a two-coat application process using a specific technique called wet-on-wet.

• The Timing: Apply the second coat roughly 10 to 20 minutes after the first coat, while the concrete is still damp but has completely absorbed the surface liquid. If you wait too long and let the first coat dry completely, it will begin repelling the second coat, preventing it from penetrating the slab.

Crucial Maintenance and Application Checklist

• Verify Ambient Temperatures Before Spraying: Ensure your local outdoor temperature falls steadily between 50°F and 85°F (10°C to 29°C) during application. If the weather is too hot, the sealer’s liquid carrier will evaporate before it can sink into the pores, leaving the active ingredients stranded on top.
• Avoid Sealing Freshly Poured Concrete: Never apply a silane or siloxane penetrating sealer to a newly poured driveway. Fresh concrete needs time to complete its internal hydration process. Wait at least 28 days to let the slab fully cure and develop the necessary lime chemistry for the sealer to react with.
• Keep Cars Off the Slab Post-Application: While water-based penetrating sealers often feel dry to the touch within 2 to 4 hours, the internal chemical reaction takes time to fully mature. Keep foot traffic off the driveway for 4 to 6 hours, and avoid parking heavy vehicles on it for a full 24 to 48 hours.
• Avoid Over-Application: Remember that when it comes to penetrating sealers, more is not always better. If you apply too much product, the excess resins will fill the pores completely and overflow onto the surface, drying into a patchy, white, or sticky film that can be difficult to remove.

Frequently Asked Questions (FAQ)

1. Will a penetrating concrete sealer change the appearance or slipperiness of my driveway?

No. High-quality penetrating sealers like silanes and siloxanes react entirely beneath the surface inside the concrete’s capillaries. They do not form an exterior film, meaning they will not add a glossy shine, alter the natural color of the concrete, or make the surface slick when wet. Your driveway will retain its original look and slip-resistant texture.

2. How often do I realistically need to reapply a penetrating driveway sealer?

Penetrating sealers are exceptionally durable because they are protected from physical wear beneath the concrete surface. Under normal residential driving conditions, a premium silane/siloxane hybrid blend will easily protect your driveway for 5 to 10 years before requiring a maintenance coat. You can test your sealer’s performance annually by pouring water onto the slab; if the water stops beading and begins soaking directly into the concrete, it’s time to reapply.

3. Can I apply a penetrating sealer over a driveway that currently has a glossy finish?

No, you cannot apply a penetrating sealer over an existing topical coating or gloss finish. The glossy film acts as a solid block that prevents the penetrating sealer from soaking into the concrete pores. You must first use a chemical coating remover or a mechanical grinder to completely strip away the old glossy sealer down to bare, porous concrete before applying a penetrating product.

4. Are water-based penetrating sealers as effective as solvent-based options?

Yes, modern water-based penetrating sealers are just as effective as solvent-based alternatives. Thanks to advancements in chemical engineering, water-based silanes and siloxanes carry the same active solids and offer identical levels of water protection and lifespan. The primary difference is operational: water-based sealers are virtually odorless and environmentally friendly, while solvent-based options penetrate slightly better into exceptionally dense concrete and can be applied in cooler temperatures.

Conclusion: Protect Your Foundation

Choosing the absolute best penetrating concrete driveway sealer is a smart investment that shields your home’s entry from water damage, winter spalling, and costly structural cracks. If you live in a region facing harsh freezing conditions and heavy road salt use, an advanced silane/siloxane hybrid like Ghost Shield 8500 provides commercial-grade defense. If your main goal is protecting your slab from unsightly car oil leaks and tire marks, a oil-repellent option like PS102 is your best match.

Taking the time to properly clean, etch, and dry your concrete before sealing is the absolute key to success. By following the right preparation steps and using the wet-on-wet application technique, you can give your driveway an invisible shield that keeps it strong, clean, and beautiful for years to come.
